Harbour walls and roadsides
Shore node SN-1
Watches from the shore.
Fixed to a harbour wall, a post or a roadside. Solar powered, no mains. Measures every vessel or vehicle that passes.
Solar50 W
Battery20 Ah
ProtectionIP66
Uplink4G
Hardware
Units that measure. One platform that remembers.
Two units today, each built for one place: the shore and the electric outboard. Every reading from either lands in the same record, sealed on the unit.

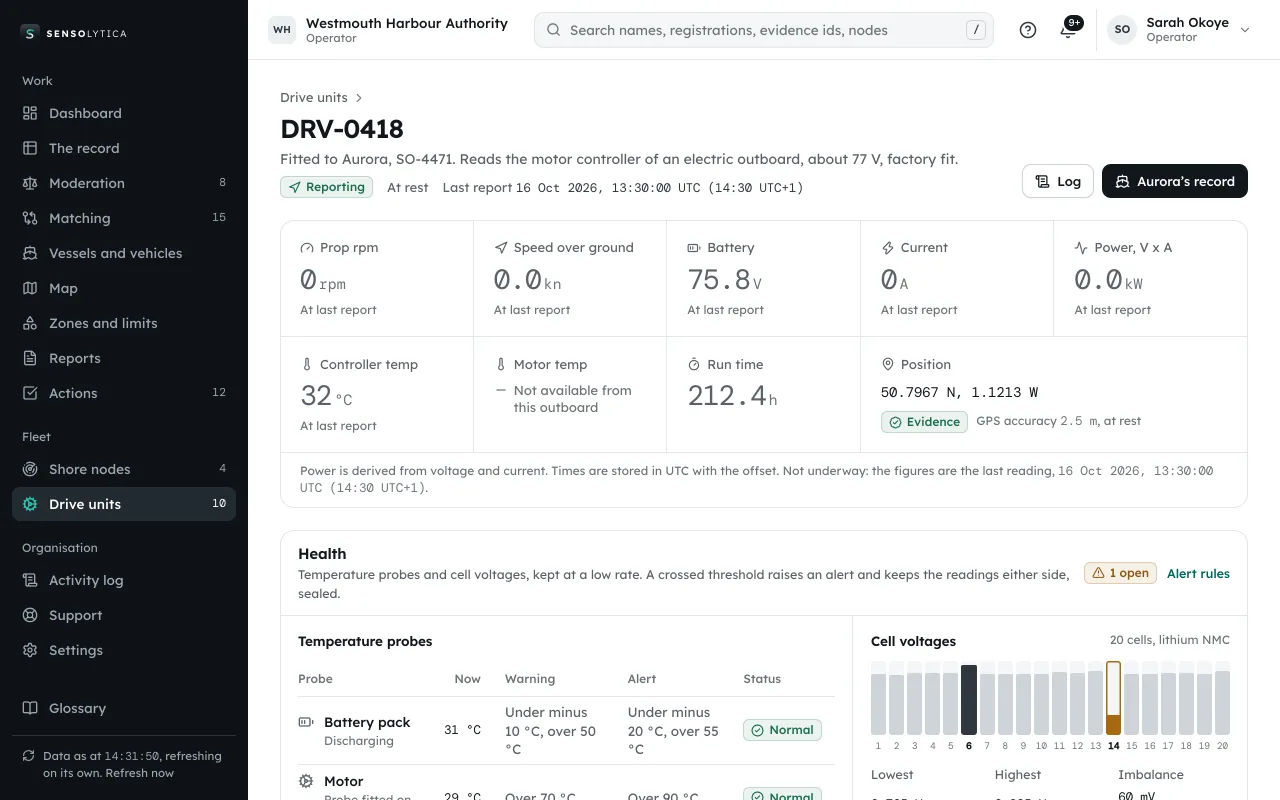

The Sensolytica portal, with a demo organisation. Data illustrative.
On the outboard, at the motor controller
Drive unit DU-1
Rides on the outboard.
Reads the motor controller of an electric outboard, fitted by the maker or retrofitted. Powered from the outboard battery via DC-DC. Reports prop rpm, speed, battery, current, temperatures and position with its accuracy.
Supply, outboard battery via DC-DC48 to 72 V
Observed at source2.5 to 4 Hz
Protection, workingIP67
Operating, working−25 to 85 °C
Side by side.
SN-1 and DU-1 are working names.
Shore node SN-1Drive unit DU-1
Where it goesHarbour walls, posts, roadsidesOn an electric outboard, at the motor controller
PowerSolar 50 W, battery 20 AhOutboard battery via DC-DC, 48 to 72 V class, working
ProtectionIP66IP67, minus 25 to 85 °C, working
MeasuresSpeed, class, identity, imagesProp rpm, speed, battery, current, temperatures, faults, position with accuracy, run time; only what each outboard gives
SeesEvery vessel or vehicle that passesThe one it is fitted to
Into the recordSealed on the unit, per captureSealed at source, in signed batches
Two views of one pass.
The shore node sees Aurora cross the approach at 7.1 knots. Her own drive unit reads 5,640 prop rpm from the motor controller in the same second. The record holds both, sealed, so nobody has to argue about which was right.
More units will follow.
Each new unit reports into the same record, sealed the same way. Tell us what you need measured.
See the units, in your own place.
Thirty minutes with an engineer: your units, your sites, and a sealed record from start to finish.
